Maintenance

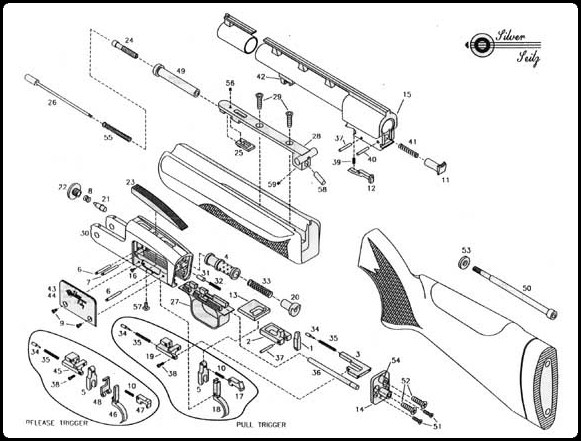

*All items in CAPS can be found on the parts list diagram*

*All items in CAPS can be found on the parts list diagram*



CHANGING TRIGGERS

To Remove Release Trigger:

When disassembling the trigger, the gun should be in a fired state.

 Step 1: Remove the two torque screws.  Pull side plate towards bottom of gun to remove.

Step 2: Remove allen head screw from SLIDE BLOCK (#45).  Replace screw in top hole of SLIDE BLOCK.  (Approx. two turns.)  Hold finger against plunger in front of SLIDE BLOCK, lift up, pull on screw, and remove SLIDE BLOCK. (Note: The screw in the top of SLIDE BLOCK acts as a handle to remove and replace SLIDE BLOCK.)

Step 3: Remove TRIGGER PIN (#6). (Insert small screwdriver in pin groove to pry up pin.)  Remove RELEASE CATCH (#48).  Twist TRIGGER (#46) 90 degrees and remove through bottom of gun.

Step 4: Remove SEAR PIN (#7).  Using needle nose pliers, remove SEAR (#47), and SPRING (#10).  RELEASE TRIGGER (#46) is now out of gun.

To Install Pull Trigger:

Step 1: Holding TRIGGER (#18) at 90 degrees, slip in through TRIGGER GUARD (#27) up into frame, twist 90 degrees, and install TRIGGER PIN (#6).

Step 2: Using needle nose pliers, grasp PULL SEAR (#17) firmly.  Make sure the SEAR SPRING (#10) is installed.  Slide SEAR (#17) into frame and replace PIN (#7).

Step 3: Replace Allen head screw from RELEASE BLOCK (#45) into top hole of PULL BLOCK (#19).  Push block down into frame so that the plunger in SLIDE BLOCK pushes against TRIGGER (#46).  Push SLIDE BLOCK (#19) down into frame using a flat blade screwdriver.  Compress plunger in front of SLIDE BLOCK.  While plunger is compressed, push down on the SLIDE BLOCK and it will fall into place.

Step 4: Remove allen head screw from top of SLIDE BLOCK and replace into rear hole of SLIDE BLOCK, making sure it is tight.

Step 5: Open and close the gun to check for proper function.

To Remove Pull Trigger:

Step 1: Remove two torque screws.  Pull slide plate towards bottom of gun to remove.

Step 2: Remove allen head screw from rear of SLIDE BLOCK (#19).  Install in top hole of SLIDE BLOCK.  Place finger on front plunger in SLIDE BLOCK.  Pull up on allen screw and remove through side of gun.  Remove SEAR PIN (#7) and remove SEAR (#17), and SPRING (#10).

To Install Release Trigger:

Step 1: Install TRIGGER (#46) through bottom of frame, twist 90 degrees until holes line up.  Using needle nose pliers, grasp RELEASE CATCH (#48).  (RELEASE CATCH straddles front side of TRIGGER.  Put RELEASE CATCH down into frame, push back until it straddles the TRIGGER.  Line up holes and install TRIGGER PIN (#6).  Grasp SEAR (#47) with needle nose pliers, making sure the SEAR SPRING (#10) is in place.  Slide into frame and install SEAR PIN (#7). (Note: SEAR must be between TRIGGER and RELEASE CATCH.)

Step 2: Remove allen head screw from PULL TRIGGER SLIDE BLOCK (#19) and install in top hole of RELEASE SLIDE BLOCK (#45).  Holding SLIDE BLOCK with allen screw, push the SLIDE BLOCK onto the frame. (Note: Make sure plungers are in the correct position around TRIGGER.)

Step 3 :Once the SLIDE BLOCK is partially installed, use a flat blade screwdriver to compress the front plunger of the SLIDE BLOCK and push down into place. (Note: If SLIDE BLOCK will not fall into place completely, a small punch or pin may be used to compress the inside small plunger which operates the RELEASE CATCH (#48).

Step 4: While compressing the small plunger, push lightly on the SLIDE BLOCK and it will fall into place.  Remove allen screw from top of SLIDE BLOCK, install in rear hole of SLIDE BLOCK, and make sure it’s tight.

Step 5: Open and close the gun to check for proper function.

ADJUSTABLE RIB ADJUSTMENTS

#1 Adjustable Rib Adjustments (5/8” high in back )

  • 1-All the way up in front and all the way down in back=60/40

  • 2-2nd notch down in front ,2nd notch up in back=70/30

  • 3-3rd notch down in front,3rd notch up in back=80/20

  • 4-4th notch down in front,4th notch up in back=90/10

#2 Adjustable Rib Adjustments (3/4” high in back)

  • 1-All the way up in front and all the way down in back=80/20

  • 2-2nd notch down in front ,2nd notch up in back=90/10

  • 3-3rd notch down in front,3rd notch up in back=100%

  • 4-4th notch down in front,4th notch up in back=110%

#3 Adjustable Rib Adjustments (7/8” high in back)

  • 1-All the way up in front and all the way down in back=90/10

  • 2-2nd notch down in front ,2nd notch up in back=100%

  • 3-3rd notch down in front,3rd notch up in back=110%

  • 4-4th notch down in front,4th notch up in back=120%

#4 Adjustable Rib Adjustments (1- 1/32” high in back)

  • 1-All the way up in front and all the way down in back=100%

  • 2-2nd notch down in front ,2nd notch up in back=110%

  • 3-3rd notch down in front,3rd notch up in back=120%

  • 4-4th notch down in front,4th notch up in back=130%


#5 Adjustable Rib Adjustments (1- 1/8” high in back)

  • 1-All the way up in front and all the way down in back=110%

  • 2-2nd notch down in front ,2nd notch up in back=120%

  • 3-3rd notch down in front,3rd notch up in back=130%

  • 4-4th notch down in front,4th notch up in back=140%

IMPORTANT NOTES:

  • Do not spray any oil on the gun anywhere

  • DO NOT SPRAY ANYTHING INSIDE GUN UNDERNEATH THE SIDE PLATE #44 !!

  • If you wipe the barrel down spray on a rag then wipe down

  • Do not put any grease or oil on the Lock Bar #13

  • Keep ejector and face of receiver dry and clean

  • Take off side plate #44 every 4-5 months to take old grease off trigger and sear (q -tip and alcohol)

  • Then reapply new grease on top of trigger and face of sear #(17 or 47)

  • Also #48 Release Catch if you have a Release Trigger
